Fc3s S5 LED Tail lights. Custom led boards.

SKU: S5_LED_7Starz Category: Tags: , ,

ATTENTION! THESE PRODUCTS ARE MADE TO ORDER. Expect a 2-4 week turn around

This product has a limited production limit. Only one set per state is allowed!!!

States already taken: TX, IA,HI,WA, AZ, NY, CA, SD, IL, FL, ID & Ontario Canada

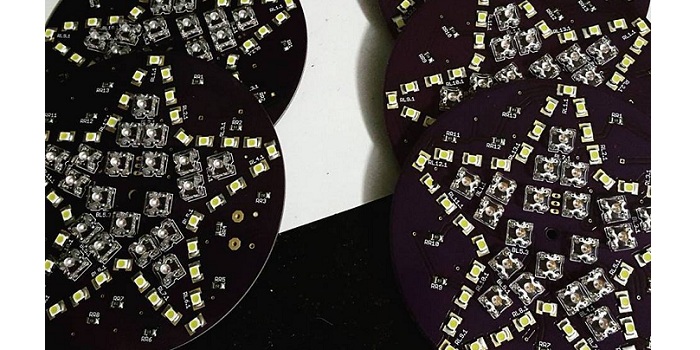

Professional grade circuit boards and components designed to withstand the harsh automotive environment.

The circuit boards are made to be an almost plug and play system. Removing the lens is all that is needed to install these. The wiring uses stock bulb sockets so there is no cutting of the harness.  The circuit boards are mounted with back plates so there is no permanent damage to the housings. You can easily go back to normal bulbs if you wanted.

The LED’s will be in a dangerous electrical system which can easily kill unprotected lights. All LED’s have voltage regulated circuits with diode reverse voltage protection.

Brake light brightness is a vital requirement so they use high quality automotive grade LED’s. They can easily be seen during the day even in the bright Arizona sun.

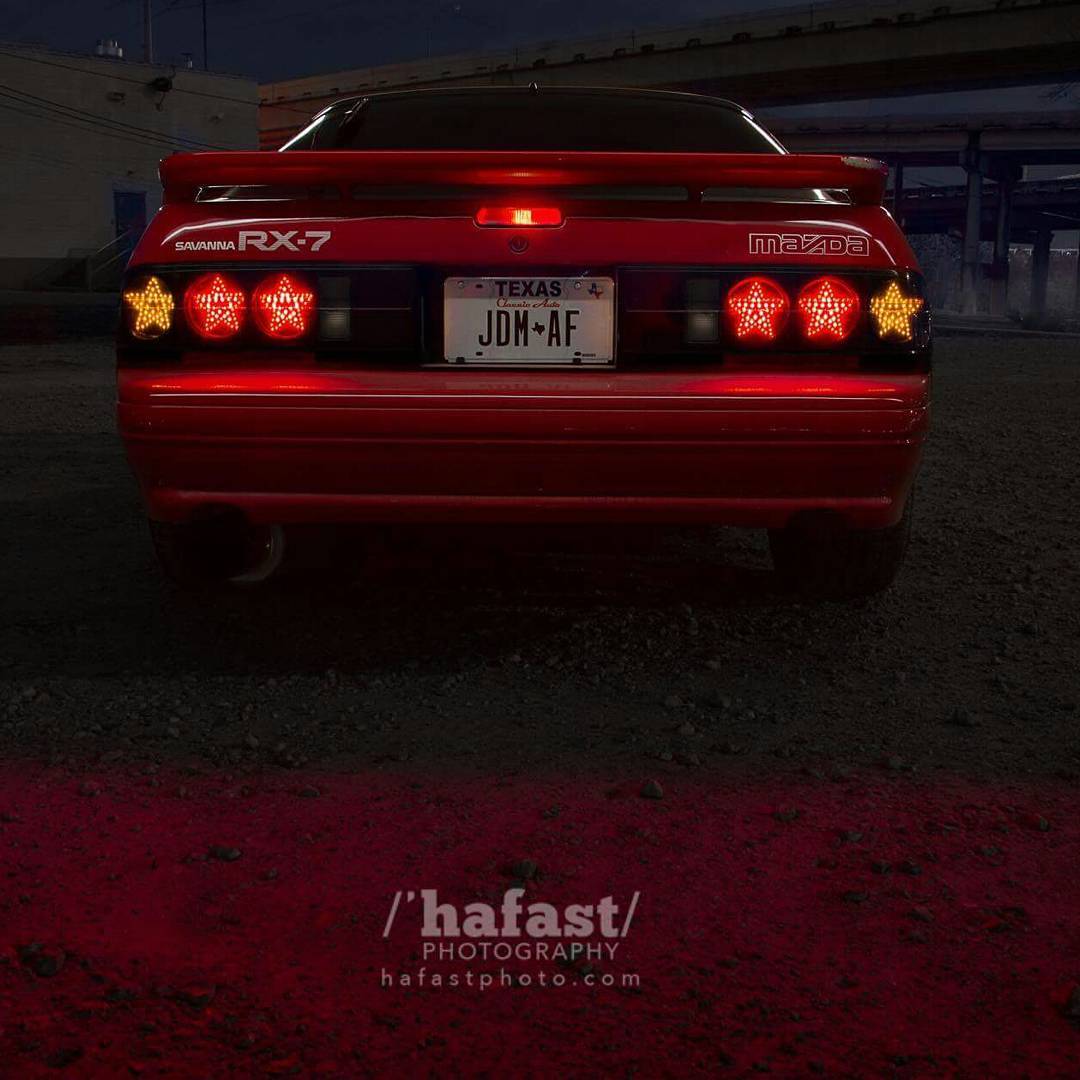

-Running lights will be an outlined Star pattern in the two brake circles.

-Braking lights will be a filled center of the Stars. You’re Brake warning light will illuminate due to the load difference. I do not include or recommend using load resistors on brakes due to the possibility of severe heat related to prolonged use.

-Turn signals are a combination of the Star outline and center lights. (A load resistor can be supplied for those with stock wiring to prevent “hyper-flashing”. Heat is not as big of an issue, but I will not install them for you.

Reverse lights and license plate lights are left stock

The cost is a DIY price shipped.
We can install the kit for you for an additional cost along with sending the tails back. I include insurance when shipping but am not liable for Damage from Shipping or installation. Refunds or reimbursements will be done on a per transaction basis.

Local installation is an option as well.

The kit includes:
2x Turn signal boards
4x Brake and Running light boards
2x power cross over cables
6x Backplates and hardware

2x Optional Load resistors for Turn Signal Hyper flash fix

Conversion Instructions page located above in the menu.

These are not certified by NHTSA and are for off road/Track/Show use only.


LED Kit, LED Kit + Turn Signal Load resistors, Send tails lights to AZRX7 for Installation, AZ Local Install
